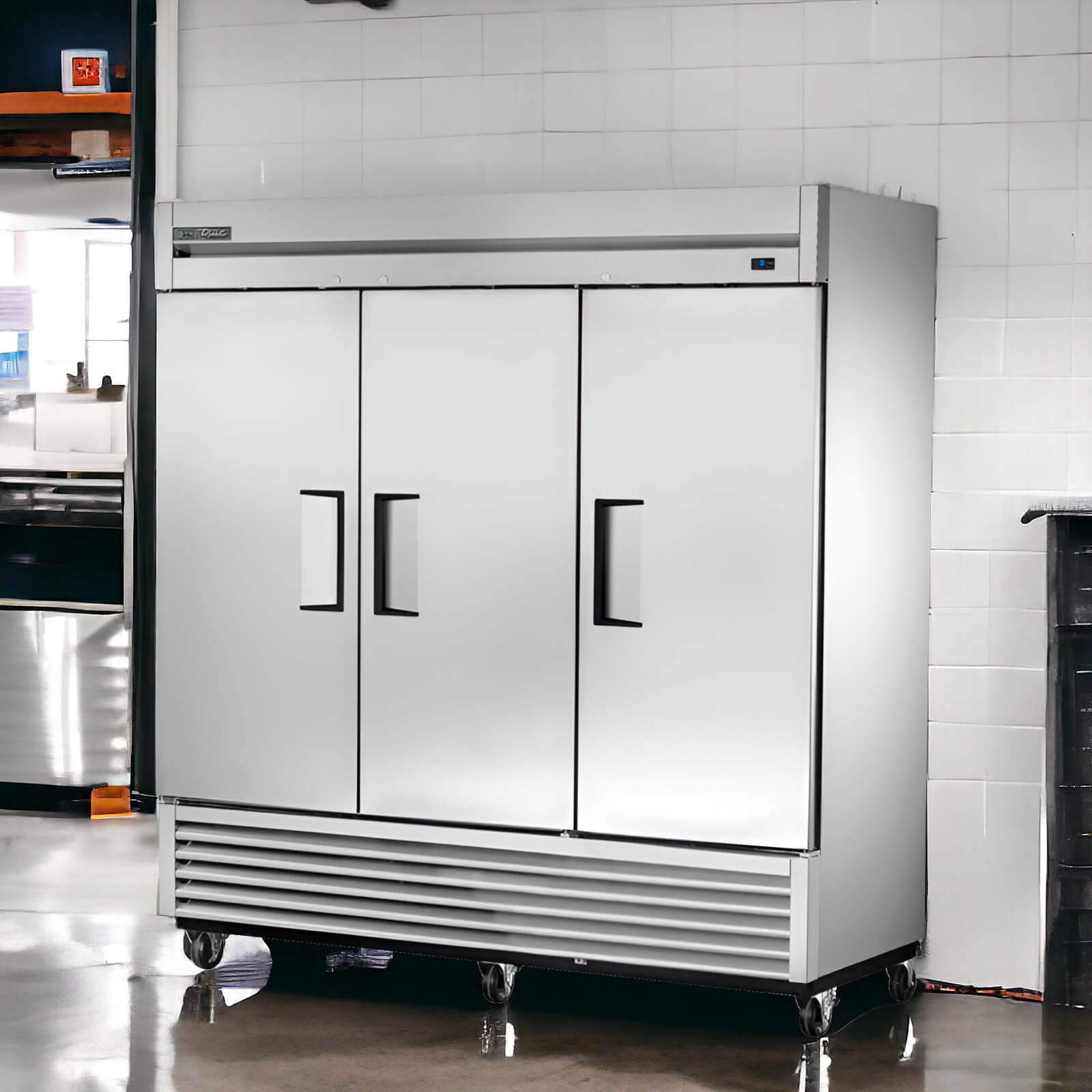

True TS-72F-HC | 78" Wide 3 Door Reach-In Freezer

Description

Reach-In Solid Swing Door Stainless Steel Freezer with Hydrocarbon Refrigerant

True’s TS series is the choice for the exclusive stainless steel commercial application. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream. Stainless steel interior and exterior front, sides and doors. The very finest stainless with higher tensile strength for fewer dents and scratches. Matching aluminum back. Adjustable, heavy duty PVC coated gray shelves. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system. Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Features

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Exterior solar, digital temperature display.
• Rear airflow guards prevent product from blocking optimal airflow.
• NSF/ANSI Standard 7 compliant for open food product.

Warranty

5 Years - Labor / 6 Years - Parts / 7 Years- Compressor

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities. Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

You can view our return policy here.

Product Specifications

Brand	True
Model Number	TS-72F-HC
Weight	650 lbs
Width	78.38"
Depth	29.5"
Height	78.38"
Door Type	solid
Size	3 section
Capacity	54 - 85 cu. ft.
Exterior Finish	stainless steel
Compressor HP	3/4 HP
Compressor Location	bottom mounted
Refrigerator Type	Reach-In
Door Quantity	3
Interior Finish	stainless steel
Capacity (Cu. Ft.)	72
Door Style	full hinged

 Design

• True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
• Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Cabinet Construction

• Exterior - Stainless steel doors, front and sides. Corrosion resistant GalFan coated steel back.
• Interior - Stainless steel liner and floor.
• Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

Door

• Stainless steel exterior and liners. Doors extend full width of cabinet shell. Door locks standard.
• Lifetime guaranteed recessed door handles. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Nine (9) adjustable, heavy duty PVC coated gray wire shelves 24–1/8"L x 22–3/8"D (613 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
• Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.

Lighting

• LED Interior lighting - safety shielded. Lights activated by rocker switch mounted above doors.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet.Unit utilizes a dual compressor system rated at 3/4 HP each.Cord and plug set included.
• 115/60/1 NEMA-5-20R

Documents

Spec Sheet
