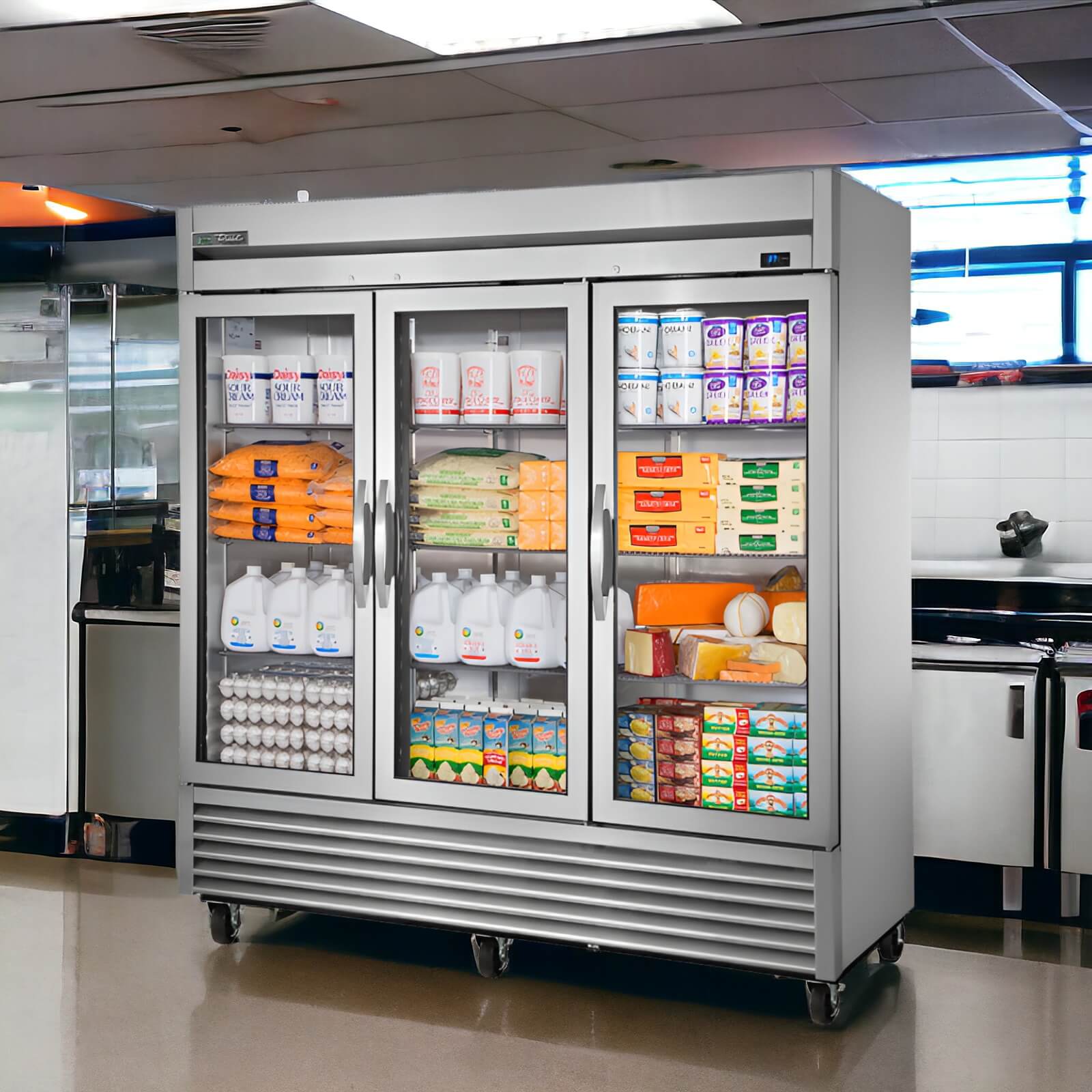

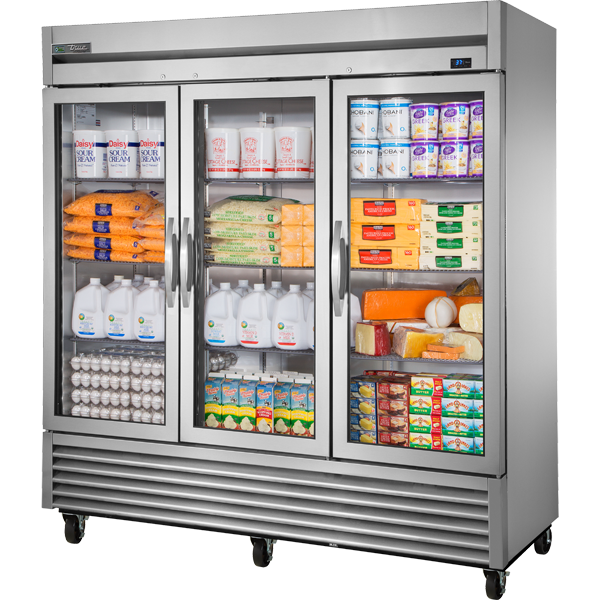

True T-72G-HC~FGD01 | 78" Wide 3 Glass Door Reach-In Refrigerator

Description

Reach-In Glass Swing Door Refrigerator with Hydrocarbon Refrigerant~Framed Glass Door Version 01

True’s glass door reach-in’s are designed with enduring quality that protects your long term investment. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. Stainless steel front. The finest stainless available with higher tensile strength for fewer dents and scratches. Energy efficient, “Low-E”, double pane thermal framed glass doors. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. Adjustable, heavy duty PVC coated shelves. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

Features

• Exterior temperature display.
• Evaporator is epoxy coated to eliminate the potential of corrosion.
• NSF/ANSI Standard 7 compliant for open food product.

Warranty

5 Years - Labor / 6 Years - Parts / 7 Years- Compressor

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities. Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

You can view our return policy here.

Product Specifications

Brand	True
Model Number	T-72G-HC~FGD01
Weight	630 lbs
Width	78.13"
Depth	29.75"
Height	78.38"
Door Type	glass
Refrigerator Type	Reach-In
Size	3 section
Capacity	54 + cu. ft.
Door Quantity	3
Exterior Finish	stainless steel front, aluminum exterior
Compressor HP	3/4 HP
Compressor Location	bottom mounted
Interior Finish	aluminum interior, stainless floor
Supports	casters
Capacity (Cu. Ft.)	72
Hinge Location	left / right
Door Style	swing / full

 Design

• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.

Cabinet Construction

• Exterior - Stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back.
• Interior - attractive, clear coated aluminum liner. Stainless steel floor with coved corners.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

Door

• “Low-E”, double pane thermal framed glass doors. Door locks standard.
• Each door fitted with 15" (381 mm) long extruded aluminum handle.
• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Nine (9) adjustable, heavy duty PVC coated wire shelves 24–1/8"L x 22–3/8"D (613 mm x 569 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Lighting

• LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• 115/60/1 NEMA-5-15R

Documents

Spec Sheet
