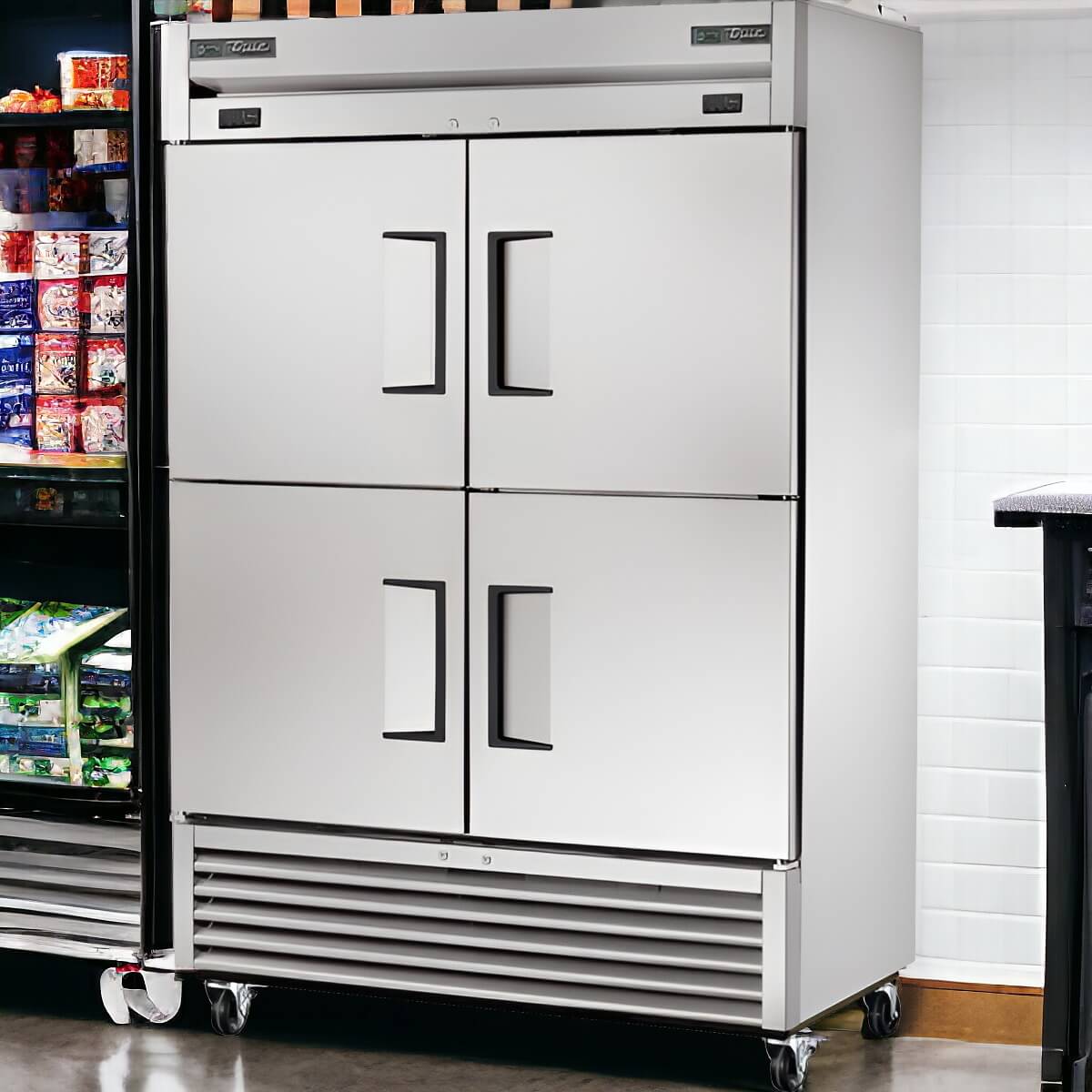

True T-49DT-4-HC | 54" Wide 4 Door Reach-In Dual Temp Refrigerator/Freezer Combo

Description

Reach-In Solid Half Swing Door Dual Temperature Refrigerator/Freezer with Hydrocarbon Refrigerant

Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace. Refrigerator located in left section; freezer in the right. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration systems that maintains cabinet refrigerator temperatures of 33°F to 38°F (.5°C to 3.3°C) and freezer temperatures of -10°F (-23.3°C). Stainless steel solid doors and front. The very finest stainless with higher tensile strength for fewer dents and scratches. Adjustable, heavy duty PVC coated shelves. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.

Features

• Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
• Evaporators are epoxy coated to eliminate the potential of corrosion.
• Freezer rear airflow guards prevent product from blocking optimal airflow.
• Minimum wattage heater in cabinet frame and freezer door.
• NSF/ANSI Standard 7 compliant for open food product.

Warranty

5 Years - Labor / 6 Years - Parts / 7 Years- Compressor

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities. Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

You can view our return policy here.

Product Specifications

Brand	True
Model Number	T-49DT-4-HC
Weight	500 lbs
Width	54.13"
Depth	29.5"
Height	78.38"
Size	2 section
Exterior Finish	stainless steel front & aluminum sides
Compressor HP	dual temp 1/3 & 1/3 HP
Door Style	half hinged
Interior Finish	aluminum, stainless steel floor
Door Quantity	4
Capacity (Cu. Ft.)	23 / 23
Capacity	38 - 53 cu. ft.
Door Type	solid
Refrigerator Type	Reach-In
Compressor Location	bottom mounted compressor
Interior configuration	shelves
Refrigeration	self-contained refrigeration
Thermometer	exterior digital



Design

• True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.

Refrigeration System

• Equipped with two, independent, factory engineered, self-contained, capillary tube refrigeration systems using environmentally friendly environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• Refrigerator located in left section; freezer in the right.
• High capacity, factory balanced refrigeration system that maintain colder standard temperatures for the best in food preservation. Refrigerator holds 33°F to 38°F (.5°C to 3.3°C); freezers holds -10°F (-23.3°C).
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing units positioned for easy cleaning. Compressors run in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
• Automatic freezer defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Cabinet Construction

• Exterior - Stainless steel front. Anodized quality aluminum ends. Corrosion resistant GalFan coated steel back.
• Interior - attractive, clear coated aluminum liner. Stainless steel floor with coved corners.
• Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

Door

• Stainless steel exterior with clear aluminum liners to match cabinet interior. Doors extend full width of cabinet shell. Door locks standard.
• Lifetime guaranteed recessed door handles. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
• Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Six (6) adjustable, heavy duty PVC coated wire shelves 22–7/8"L x 23–1/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on1/2" (13 mm) increments.

Lighting

• Compartmentalized, interior lighting - safety shielded. Lights activated by rocker switch mounted above top doors.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• 115/60/1 NEMA-5-15R
