Description

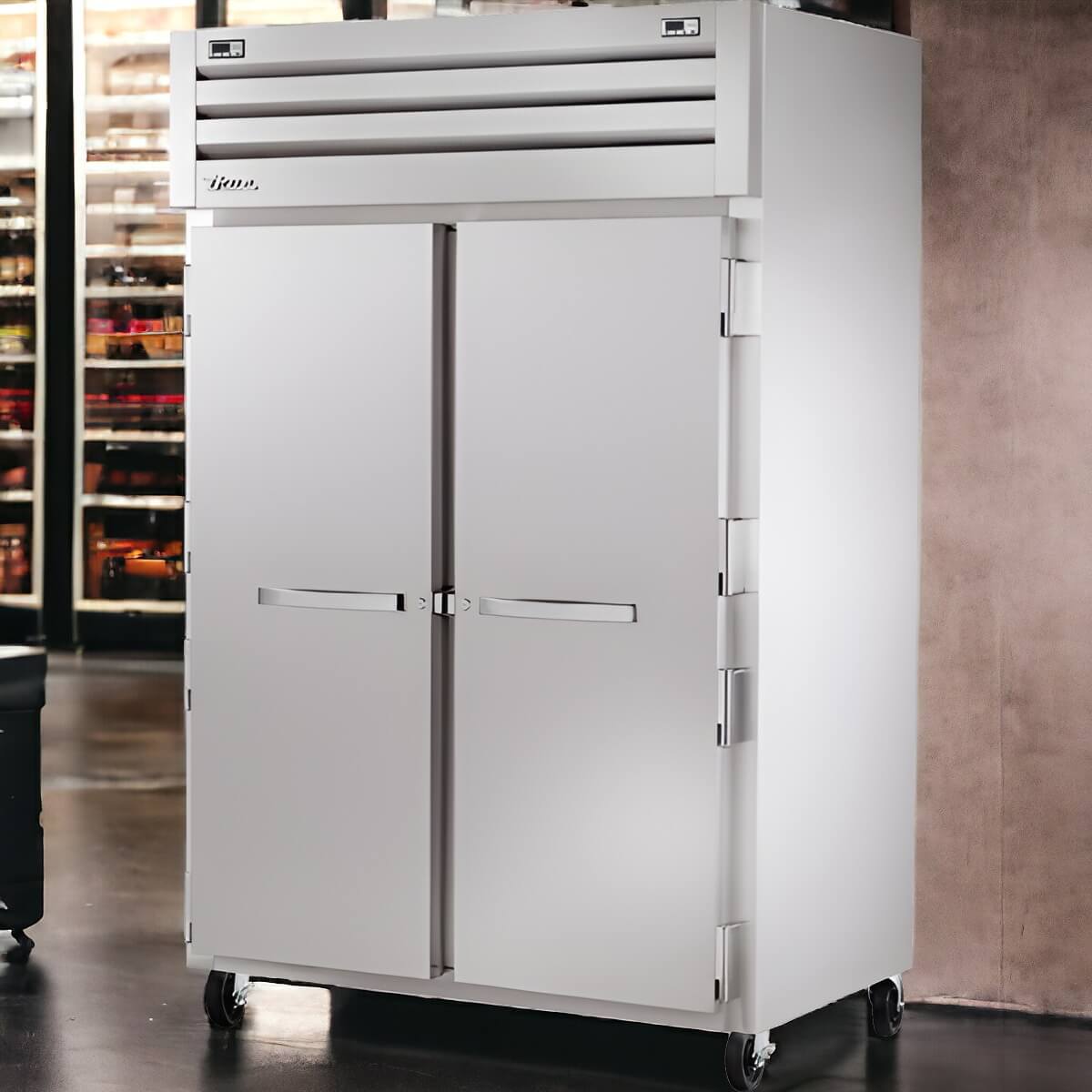

Reach-In Solid Swing Door Dual Temperature Refrigerator/Freezer
High capacity, factory balanced system that maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator section and -10°F (-23.3°C) in the freezer section. Refrigerator located in left section; freezer on right section. Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed door hinges. Lifetime guaranteed heavy duty chrome extruded door handles. Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Features
- Two (2) exterior digital temperature displays, one for refrigerator section and one for freezer.
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready.
- NSF/ANSI Standard 7 compliant for open food product.
Warranty
5 Years - Labor / 6 Years - Parts / 7 Years- Compressor
Shipping
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.
You can view our shipping policy here.
Returns/Refunds/Damages
Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities. Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.
You can view our return policy here.
Product Specifications
| Brand | True |
|---|---|
| Model Number | STA2DT-4HS |
| Weight | 725 lbs |
| Width | 52.63" |
| Depth | 33.75" |
| Height | 77.75" |
| Size | 2 section |
| Exterior Finish | stainless steel |
| Compressor HP | dual temp 1/3 & 1/2 HP |
| Door Style | half hinged |
| Interior Finish | aluminum |
| Door Quantity | 4 |
| Capacity (Cu. Ft.) | 25 / 25 |
| Capacity | 38 - 53 cu. ft. |
| Door Type | solid |
| Refrigerator Type | Reach-In |
| Compressor Location | top mounted compressor |
| Interior configuration | shelves |
| Refrigeration | self-contained refrigeration |
| Thermometer | exterior digital |
Design
- True’s solid door reach-in’s are designed with enduring quality that protects your long term investment.
- Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
Refrigeration System
- Two independent, self contained refrigeration systems; CFC free, environmentally friendly and factory balanced.
- R134A refrigerator refrigerant - R404A freezer refrigerant.
- High capacity, factory balanced system that maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator section (Refrigerator on left side) and -10°F (-23.3°C) in the freezer section (Freezer on right side).
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
Cabinet Construction
- Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Door
- Lifetime guaranteed bolt style door locks standard.
- Lifetime guaranteed heavy duty all metal working door handles.
- Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
Shelving
- Three (3) Heavy duty, chrome plated, wire shelves per section.
Lighting
- LED interior lighting, safety shielded. (STR/STA models standard, STG optional)
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet. Cord and plug set included.
- 115/60/1 NEMA-5-20R
Documents
FAQ
Having a combo unit provides several advantages, including space-saving, efficiency, and cost-effectiveness. It consolidates two essential storage spaces into one, reducing the need for separate units. This setup is perfect for small kitchens, maximizing floor space, and creating a streamlined workflow. Plus, you’ll save on energy costs, as it uses fewer power sources than running separate freezers and refrigerators.
Most combo units feature separate digital controls for the fridge and freezer sections, allowing you to maintain distinct temperatures for each. The freezer section typically operates between 0°F to -10°F, while the refrigerator will stay between 35°F to 40°F. You can adjust the settings to fit your specific storage needs, providing flexibility for a range of items.
Yes, you can use a combo in a hot kitchen, but it’s important to choose a model with a top-mount compressor to handle the heat more effectively. A top-mount compressor keeps the cooling system away
Why Top Restaurants Trust This Model
Top restaurants trust this model because it’s designed to withstand the constant demand of busy kitchens, keeping ingredients fresh and accessible during peak hours. With efficient cooling systems and durable construction, it can handle frequent door openings without compromising performance! This unit is designed to keep up with your kitchen’s pace, reducing downtime and maintaining a consistent temperature. When reliability and speed matter most, this refrigerator/freezer combo ensures you can focus on serving your customers.
Speed Up Kitchen Operations
A well-organized refrigerator/freezer combo is key to keeping your kitchen running smoothly and efficiently! When ingredients are properly stored and labeled, your staff can quickly grab what they need, cutting down on search time and improving workflow. Adjustable shelves and compartmentalized storage ensure that everything has its place, preventing overcrowding and spoilage. With easy access to items, you reduce the time doors stay open; which helps to maintain consistent temperatures. A well-arranged refrigerator/freezer combo not only speeds up operations but also ensures food safety and freshness throughout the day!
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and/or other food equipment hygiene codes and requirements.
