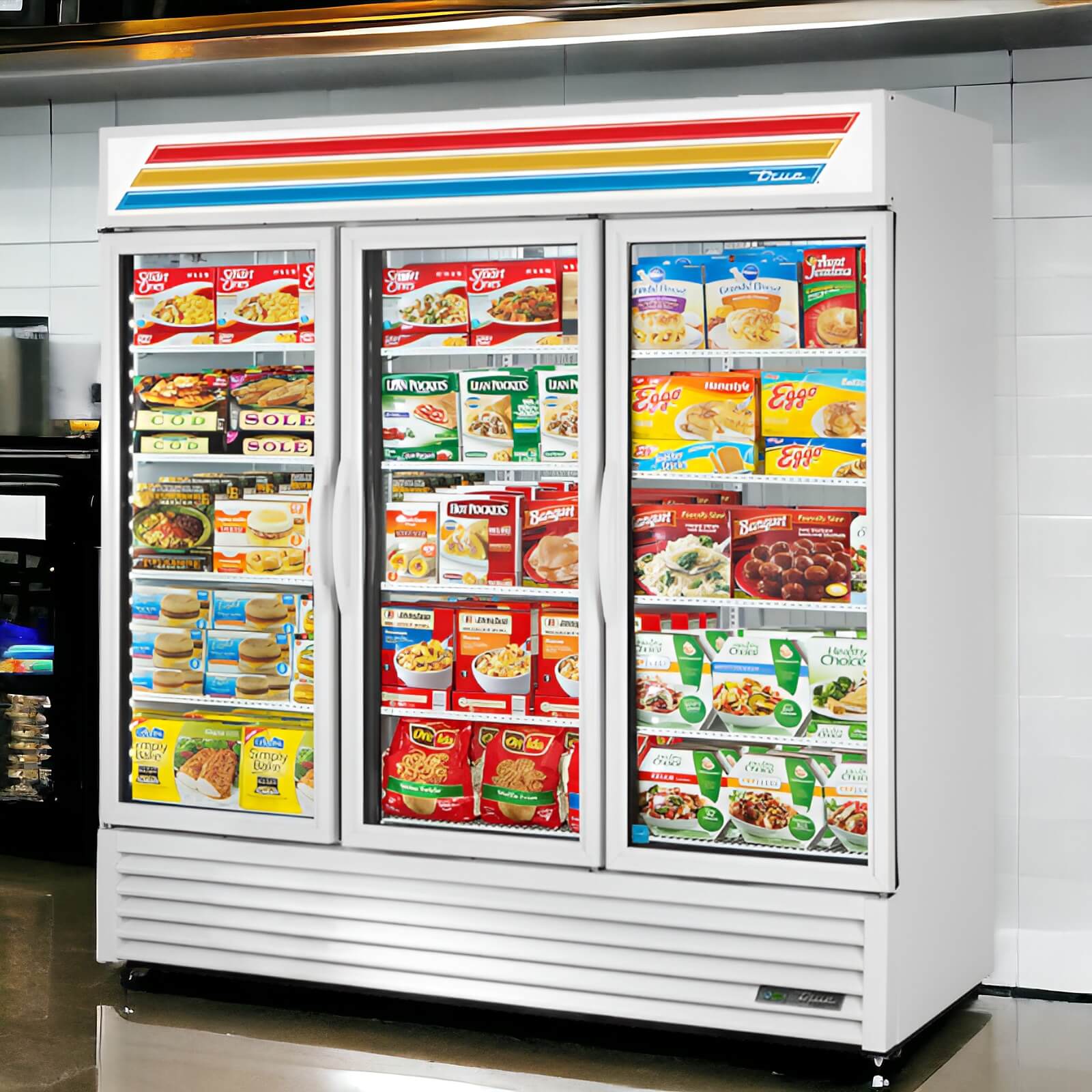

True GDM-72F-HC~TSL01 | 78" Wide 3 Swing Door White Merchandiser Freezer

Description

Swing Door Freezer with Hydrocarbon Refrigerant~True Standard Look Version 01

The world’s #1 manufacturer of glass door merchandisers. Designed using the highest quality materials and components to provide the user with an attractive, point of purchase merchandiser that brilliantly displays frozen food and ice cream, resulting in high impulse sales. Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP). High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream. Exterior – non-peel or chip white powder coated cold rolled steel; durable and permanent. Interior – attractive, white aluminum interior liner with stainless steel floor. Self closing door. Positive seal, torsion type closure system. Triple pane thermal insulated glass door assemblies. White powder coated frames. LED interior lighting provides more even lighting throughout the cabinet. Safety shielded. Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Features

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• See our website www.truemfg.com for latest color and sign offerings.
• Backguard and floor rack ensure optimum airflow.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Warranty

5 Years - Labor / 6 Years - Parts / 7 Years- Compressor

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities. Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

You can view our return policy here.

Product Specifications

Brand	True
Model Number	GDM-72F-HC~TSL01
Weight	850 lbs
Width	78.13"
Depth	29.88"
Height	78.63"
Size	3 section
Doors	hinged
Refrigeration	self-contained, bottom mounted
Capacity (cu. ft.)	62
Exterior Finish	white
Compressor HP	1 HP

 Design

• True’s glass door freezers are designed with enduring quality that protects your long term investment.
• True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays frozen food and ice cream.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
• Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Cabinet Construction

• Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent.
• Interior - attractive, white aluminum liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Illuminated exterior sign panel. Variety of sign options available.

Door

• Triple pane thermal insulated glass door assemblies. White powder coated frames.
• Each door fitted with 12” (305 mm) long extruded handle.
• Self closing doors. Positive seal, torsion type closure system.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

• Twelve (12) adjustable, heavy duty PVC coated wire shelves 24–1/8”L x 20–3/4”D (613 mm x 528 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.

Lighting

• LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Electrical

• Unit is completely pre-wired at the factory and is ready for final connection to a 115/60Hz single phase, 20 amp dedicated circuit.Unit utilizes a dual compressor system rated at 3/4 HP each.Cord and plug set included.
• 115/60/1 NEMA-5-20R

Documents

Spec Sheet
