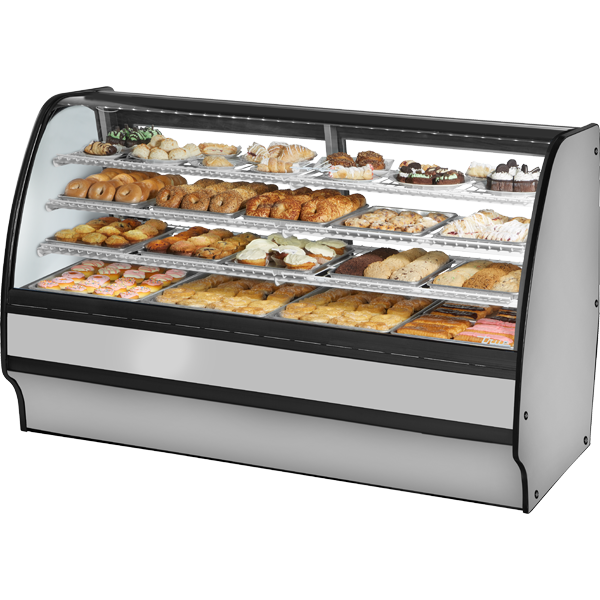

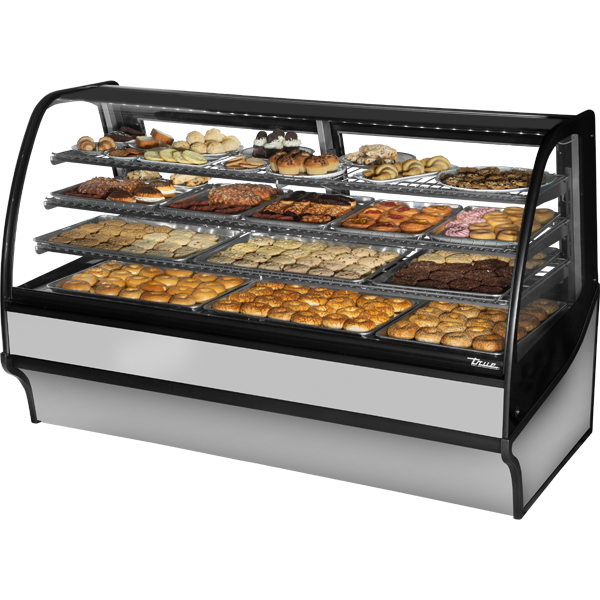

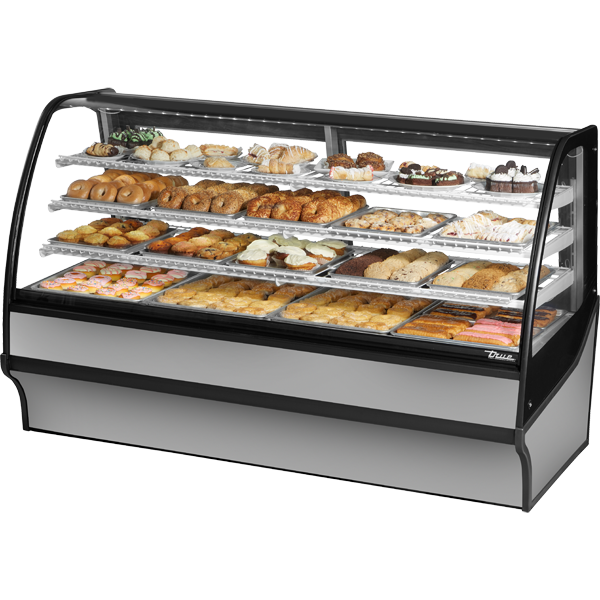

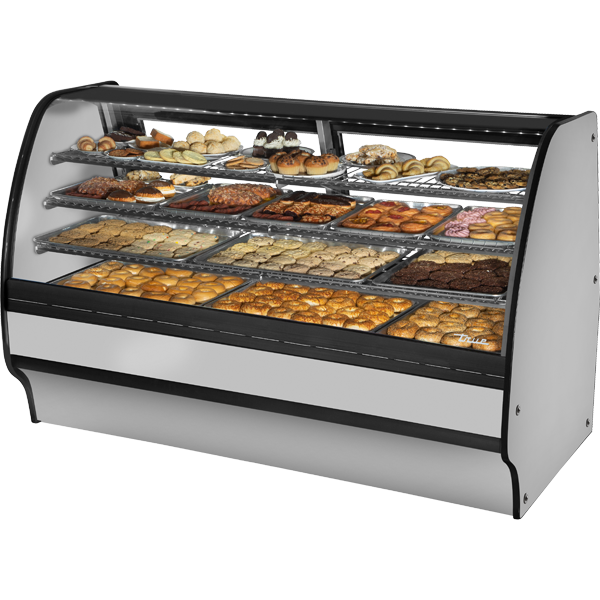

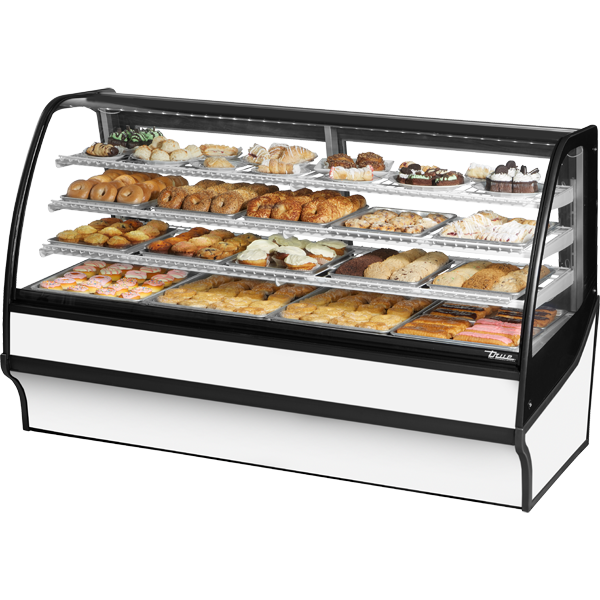

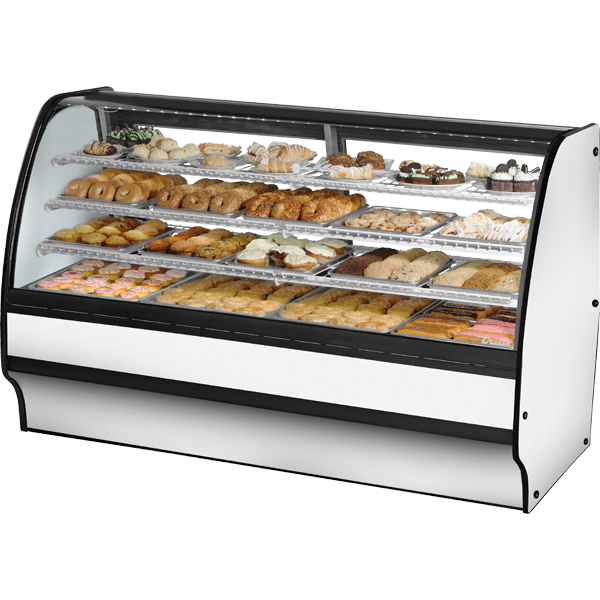

True | 77" Wide Dry Case Curved Glass Display Case

Description

Curved Glass, Glass End Dry Case with Black Exterior and White Interior

True’s "dry" display case combines efficient, high volume merchandising with an elegant curved glass front for sophisticated presentation of high end desserts and pastries. Cabinet is NSF/ANSI Standard 2 compliant to hold open food product. Two (2) rear sliding glass doors for back access. Exterior – powder coated FDA black rounded front and back, black aluminum aesthetic side and front panels. Color options available (upcharge may apply) – white or stainless. Curved glass front and side glass panels. Interior – powder coated FDA white over CRS material. Color options available (upcharge may apply) – black or stainless. Three (3) tiered levels of adjustable wire cantilever shelves that match cabinet interior color. Chrome plated wire shelves standard on stainless units. Front glass swings Up for easy cleaning access.

Features

• Front glass swings Up for easy cleaning access.
• NSF/ANSI Standard 2 compliant for open food product.

Warranty

7 Years - Labor / 7 Years - Parts / 7 Years- Compressor

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities. Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

You can view our return policy here.

Product Specifications

Brand	True
Model Number	TDM-DC-77-GE/GE-B-W
Weight	830 lbs
Width	77.25"
Depth	39"
Height	49.13"
Service Type	full service
Front	curved glass
Exterior Finish	all black exterior
Interior Finish	white interior
Shelf Quantity	3
Ends	glass

 Design

• True’s "dry" display case combines efficient, high volume merchandising with an elegant curved glass front for sophisticated presentation of high end desserts and pastries.
• Designed to provide an attractive companion to our TDM-R "refrigerated" display merchandiser. Please note: If units are banked together, because of side panel, a 1/2" gap will remain between units.

Cabinet Construction

• Exterior - powder coated FDA black rounded front and back, black aluminum aesthetic side and front panels. Color options available (upcharge may apply) - white or stainless.
• Curved glass front and side glass panels.
• Interior - powder coated FDA white over CRS material. Color options available (upcharge may apply) - black or stainless.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
• Curved glass front and side glass panels.

Door

• Two (2) rear sliding glass doors for back access.
• Each door fitted with 12" (305 mm) long aluminum handle.
• Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.

Shelving

• Three (3) adjustable heavy duty PVC coated wire shelves standard.
• Each shelf supports a maximum weight of 150 lbs. (69 kg).

Lighting

• LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
• NEMA-5-15R

Documents

Spec Sheet
