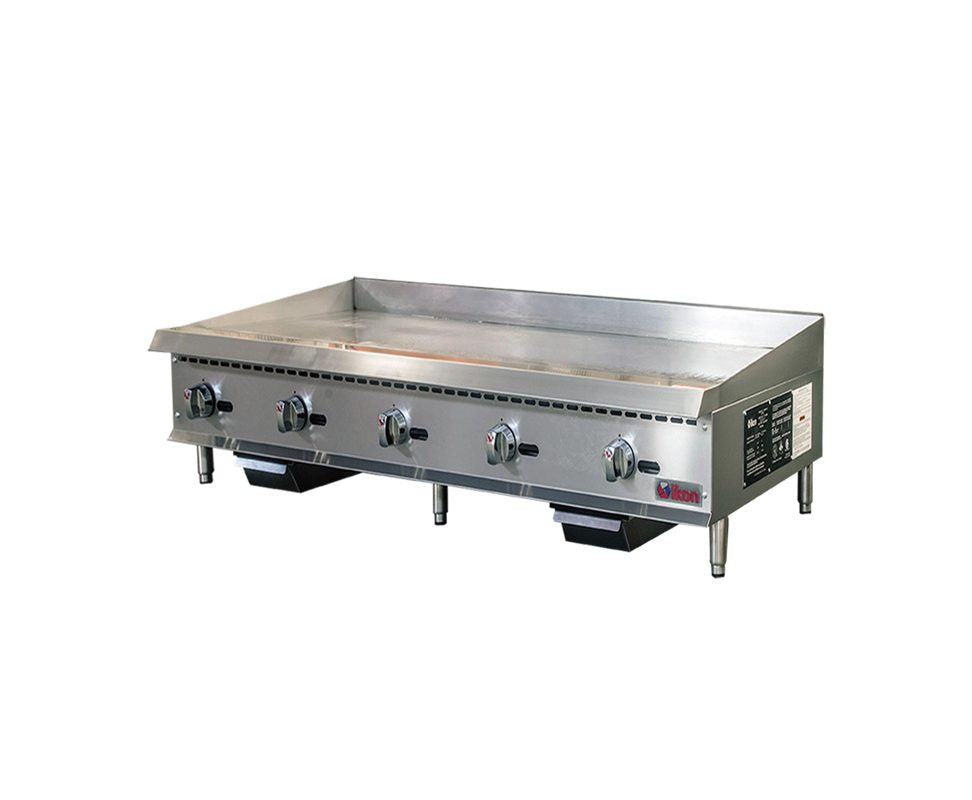

IKON | Thermostat Control Griddle

Description

Features

• The Ikon Thermostat Control Griddles are available in 24”, 36”, 48” & 60” widths, the continuous 30,000 BTU output per burner provides even heat to the 1” thick polished steel griddle plate
• Adjustable manual gas controls provide easy and safe operations
• “U” shape burners provide even heat distribution every 12”
• 1” griddle plate
• 30,000 BTU/ burner
• Gas control knob every 12”
• All stainless steel cabinet
• Double wall insulated sides
• Widths: 24”, 36”, 48”, & 60”
• “Cool-to-the-touch” front s/s edge
• Back and side splash guards fully welded to griddle plate
• Flue located on back of unit for ample ventilation
• Adjustable stainless steel legs, non-skid feet
• Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
• Grease trough is standard 4” spatula width
• Griddle is fully serviceable from the front
• Available in Natural gas(NG) or Liquid propane(LP). A conversion kit is supplied with each unit

Warranty

Parts & Labor - 1 year

MVP Group Corp. and MVP Group LLC. (Henceforth MVP Group) (IKON COOKING) warrants, to the original purchaser, all of its new IKON Cooking equipment to be free from defects in material or workmanship, under normal use and maintenance service, for a period of one (1) year from the date of original purchase, or 18 months after shipment date from MVP Group, whichever occurs first. Warranty coverage is limited to the repair and/or replacement, including labor charges, and travel charges within 100 miles (160 Km.) round trip.

A special warranty covers the IGF series. These units carry the regular one (1) year parts and labor plus an additional fry tank warranty to the original end user only; if the fry tank leaks within the first two (2) years of operation due to a manufacturing defect, as confirmed by an MVP Group authorized service agent, MVP Group shall replace the fryer in its entirety. Any associated freight and/or installation charges shall not be included with the replacement. Exceptions to above warranty are: (A) Damages resulting from shipping, handling, or abuse. (B) Incorrect installation and/or connections. (C) Adjustments or calibration of any thermostats or timers. (D) Faults due to MVP Group - General Warranty Statement - JANUARY 2021 FINAL.docx 2021-02-18 9:16:00 AM Page: 2 lack of regular maintenance or cleaning of any internal or external part(s). (E) Replacement of any wearable items such as: baskets, grills, knobs, etc. (F) Excessive soot accumulation due to poor gas conditions. (G) Poor results due to: excessive or inadequate temperature(s) or gas pressure conditions (H) Failure to follow manual’s lighting instructions, maintenance and/or usage.

Ovens CANNOT be installed on control side (right side) next to any high temperature heat source including but not limited to fryers, ranges, griddles, etc. Such installation will result in IMMEDIATE termination of factory warranty. If you have any questions, please contact MVP Tech Support at info@chillycellar.com

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities.

Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

Product Specifications

Brand	Imperial
Model Number	ITG-36
Weight	430 lbs
Width	36"/48"/60"
Depth	32.38"
Height	14"
Exterior Finish	stainless steel front & sides
Plate thickness	1"
Controls	thermostat / solid state controls
Cooking Surface Width (side - side)	31" - 36"
Cooking Surface Depth (front - back)	24" - 29"
Griddle Plate Finish	smooth steel

Documents

Warranty

Spec Sheet

Manual
