Hoshizaki Bundle - KMD-860MRJZ Remote Cooled Crescent Cuber Ice Maker | URC-9FZ Remote Condenser | B-800SF Ice Bin | HS-5605 Tubing Kit

KMD-860MRJZ Remote-Cooled Crescent Cuber Ice Maker

The KMD-860MRJZ is capable of producing approximately 967 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-9FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Key Features

• Dimensions: 30″ W x 24-5/8″ D x 28″ H
• Up to 967 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 12.5 amps (20 Amp Max fuse)
• 5.05 kwh/100 lbs.@ 90/70
• Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

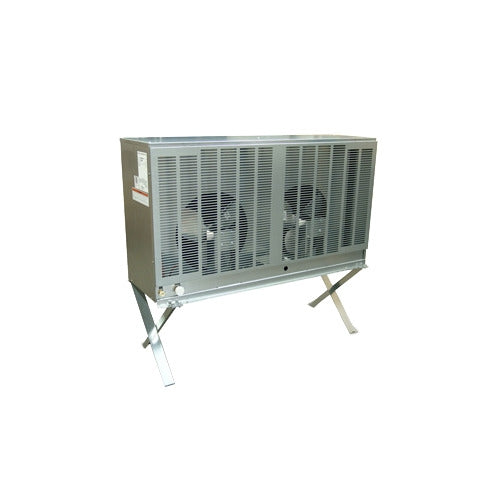

URC-9FZ Remote Condenser

Key Features

• Remote condensers for KM Series Cubers and F Series Flakers / Cubelets
• Quiet operation
• Weather resistant cabinet for longer life
• May be installed outdoors up to 55 feet from icemaker using a pre-charged tubing kit
• For installations exceeding 55 feet, contact Factory Service Department

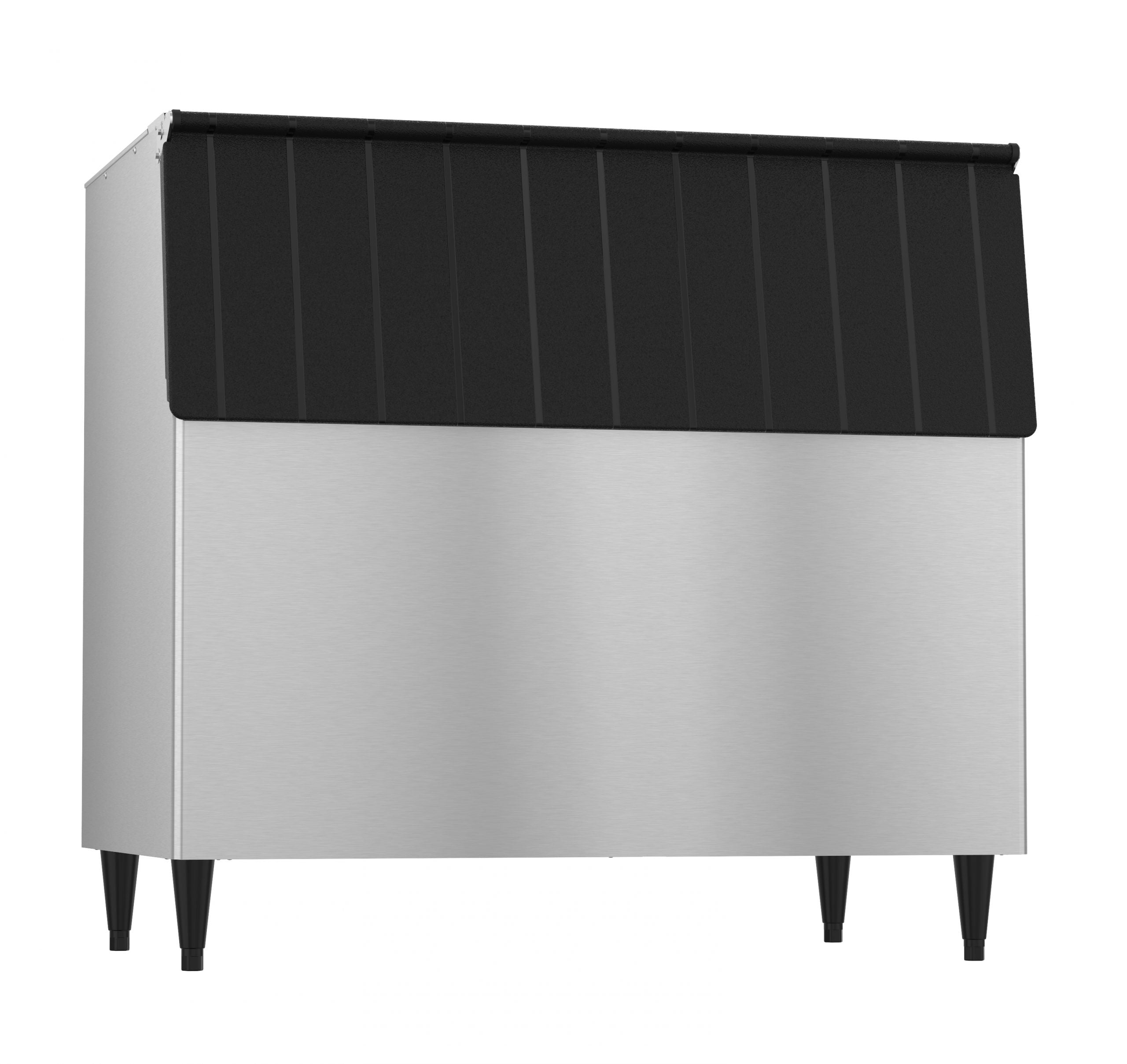

B-800SF Ice Storage Bin

Safely store up to 800 lbs of ice* with this B-800SF 48″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-800SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified, NSF and includes a Two Years: Parts & Labor warranty (Before January 2012 production). *Capacity based on 26.9 ft3 x 30lbs/ft3 average density of ice

Key Features

• Dimensions: 48″ W x 32- 1/2 ” D x 46″ H
• Stores up to 800 lbs of ice
• Capacity based on 26.9 ft3 x 30lbs/ft3 average density of ice
• For top-mounted ice maker, top kits sold separately (See spec sheet for details)
• Top-hinged front-opening bin door
• Sturdy construction capable of supporting stacked ice machine configurations
• Standard with 6″ Painted Legs
• Optional: Four, 6″ Stainless Steel Legs – LP-6 LEG
• 3/4″ FPT drain
• 210 lbs
• Two Years: Parts & Labor warranty

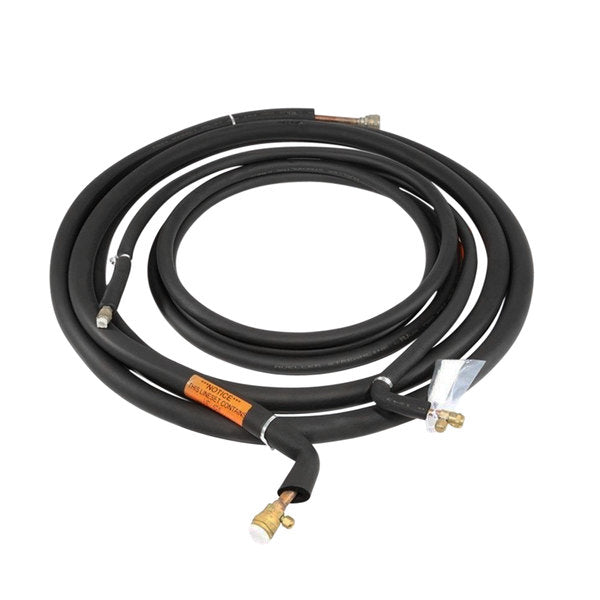

HS-5605 35 ft Ice Bin Tubing Kit Brazing



Use this Hoshizaki HS-5605 35' remote ice machine condenser line kit to connect your remote cooled ice machine to a URC-9FZ, URC-14FZ remote condenser. These lines are vital components, as they will reliably exchange refrigerant between the two units and ensure smooth operation.

This line set allows you to install your condenser unit on the roof or in another location away from the rest of your operation. This helps to reduce clutter in your kitchen, streamline your workspace, and eliminate additional heat build-up or strain on your HVAC system. This line set will require refrigerant to be added and will need brazing at the time of installation.

Warranty

KMD-860MRJZ Remote-Cooled Crescent Cuber Ice Maker

3-Year – Parts & Labor on Entire Unit & Parts
5-Year – Parts & Labor on Air-Cooled Condenser Coil, & Compressor, Evaporator

URC-9FZ Remote Condenser

3-Year – Labor on Entire Unit.
3-Year – Parts on Entire Unit.
5-Year – Parts on Air-Cooled Condenser Coil.

B-800SF Ice Storage Bin

2-Year – Parts & Labor

In the event that proper registration has not been completed, the warranty shall begin from the factory ship date or the distributor sold date, whichever is available. The owner/user is responsible to provide valid proof of installation if the unit is installed more than 180 days from the current registration start date. Regardless of the actual installation date, the warranty start date shall not exceed twenty-four (24) months from the factory ship date.

The obligation of Hoshizaki and the rights and remedies of the owner/user under this warranty are exclusively limited to:

• Repair or replacement, including labor charges, of all parts or assemblies that in Hoshizaki's opinion are defective within three years after the original date of installation.

• Repair or replacement, excluding labor charges, of a compressor or air cooled condenser that in the opinion of Hoshizaki is defective during the two year period after the three year warranty period.

The labor warranty shall include standard straight time labor charges at the product location only and shall exclude charges for travel time, mileage or other premium charges. Any labor service required to fulfill the warranty obligation must be performed by a service company qualified and accepted by Hoshizaki and/or the local Hoshizaki distributor.

This warranty does not include parts or labor coverage for component failure or other damage resulting from:

• External electrical power failure or miswiring to Product for any reason.

• Adverse operating conditions as set forth in the owner/user manual for the Product.

• Failure to clean and/or maintain Product as set forth in the owner/user manual for the Product.

All claims for labor or parts must be made through the local Hoshizaki distributor. The defective part for which labor reimbursement is claimed, together with the service invoice, must be returned to the Hoshizaki distributor within fifteen days from the date of service to be eligible for labor and parts warranty coverage. All replacement parts must be approved Hoshizaki parts. Incidents of failure that do not require replacement of a part shall be explained in sufficient detail on the service invoice to identify the failure. All claims shall include the product model number, serial number, original date of installation, and customer identification.

Warranty does not cover standard wear parts which include door gaskets, incandescent bulbs, and fluorescent bulbs. Warranty also does not cover issues caused by improper installation or lack of basic preventative maintenance which includes, for Refrigerators and Freezers, regular cleaning of condenser coils.

The foregoing warranty shall not apply to (1) any part or assembly (a) that has been altered, modified, or changed, (b) that has been subjected to misuse, abuse, neglect or accidents, or (c) any Product on which the serial or model number has been removed or altered, or (2) any Product that has been installed and/or maintained inconsistent with Hoshizaki's technical publications, or (3) any Product that has been installed or is located outside the standard warranty coverage area. Warranty valid in United States, Canada, Puerto Rico, and U.S. territories. Contact factory for warranty in other countries. The seven year compressor parts warranty shall not apply when the Product refrigeration system is modified with a condenser, heat reclaimed device, or parts and assemblies other than those manufactured by Hoshizaki unless Hoshizaki has accepted modifications for specific installations in writing.

Hoshizaki assumes no liability for misuse or inadequate maintenance of the Product. In no event shall the user be entitled to recover incidental or consequential damages, including but not limited to, damages for inconvenience, food loss, rental or replacement equipment, loss of profits, or other commercial loss.
