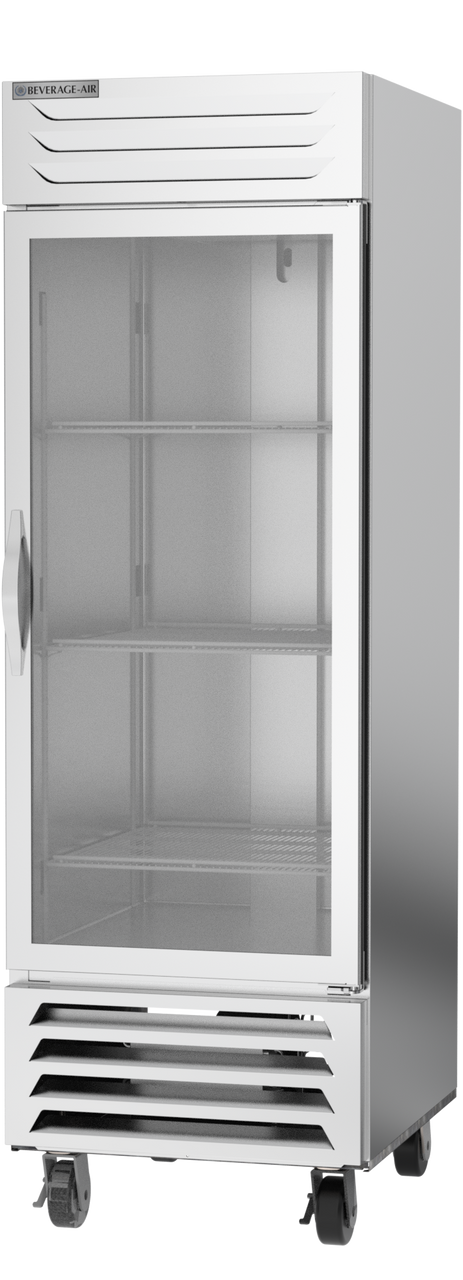

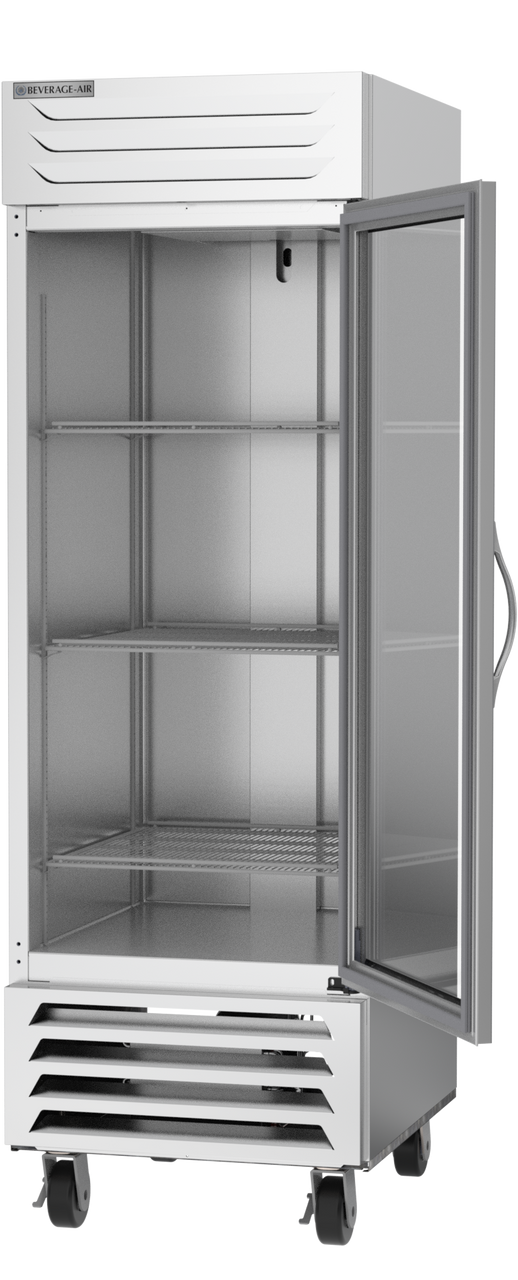

Beverage Air FB23HC-1G | 27" Wide 1 Glass Door Bottom Mount Reach-In Freezer Vista Series

Description

Perfect for restaurants, bakeries, and other commercial food settings, this freezer features a durable and clean-looking exterior with a stainless steel front door and gray painted sides. Featuring 23 cu. ft. of interior storage, it also provides enough room to store your product. Plus, the exterior grille that covers the bottom mounted refrigeration system is easy to remove for preventative maintenance or to allow necessary repairs. Inside, this unit features an aluminum interior with foamed-in-place CFC and HCFC-free polyurethane insulation for superior temperature retention, even in kitchens where ambient temperatures are high.

Features

CABINET CONSTRUCTION

• Stainless steel front and door, gray painted sides
• Gray painted aluminum interior
• Full electronic control
• LED lighting
• Self-closing door with 120º stay-open feature, on spring-loaded hinges
• One-piece grille allow easy removal/installation for preventative maintenance
• Three (3) heavy duty epoxy coated wire shelves
• 6” Casters with two (2) brakes

REFRIGERATION SYSTEM

• Uses environmentally friendly, energy efficient R290 refrigerant, and meets all regulatory requirements for CARB, SNAP, DOE & more
• Hot gas condensate evaporator
• Adaptive defrost
• Epoxy coated evaporator coil
• Maintains product temperatures of 0°F and below

Warranty

3 Year Parts/Labor Standard, Additional 2 Year Warranty Available | Additional 7 Year Compressor Warranty

Shipping

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options.

You can view our shipping policy here.

Returns/Refunds/Damages

You may return most new, unopened items within 30 days of delivery. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc - proof will be required).

You should expect to receive your refund within four weeks of giving your package to the return shipper. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

Product Specifications

Model	FB23HC-1G
External Dimensional Data
Width Overall	27 1/4”
Depth Overall with Handle	33 1/2”
Height Overall	84 1/8”
Number of Doors	1
Depth with Door Open 90°	57 3/4”
Door Opening (in)	24 1/8” x 52 1/2”
Internal Dimensional Data
NET Capacity (cubic ft.)	23.32
Internal Width Overall (in)	24 1/4”
Internal Depth Overall (in)	28 1/2”
Internal Height Overall (in)	61 3/4”
Internal Height Useable (in)	55”
Number of Shelves	3
Electrical Data
Full Load Amperes	115/60/1 6.34
Refrigeration Data
Horsepower	3/4
Capacity (BTU/Hr)	2097
Heat Rejection (BTU/Hr)	3145
Charge (lbs/grams/ounce)	0.2094 / 95 / 3.35
Shipping Data
Gross Weight (crated lbs)	408 lbs
Height - Crated	85”
Width - Crated	28”
Depth - Crated	36”
