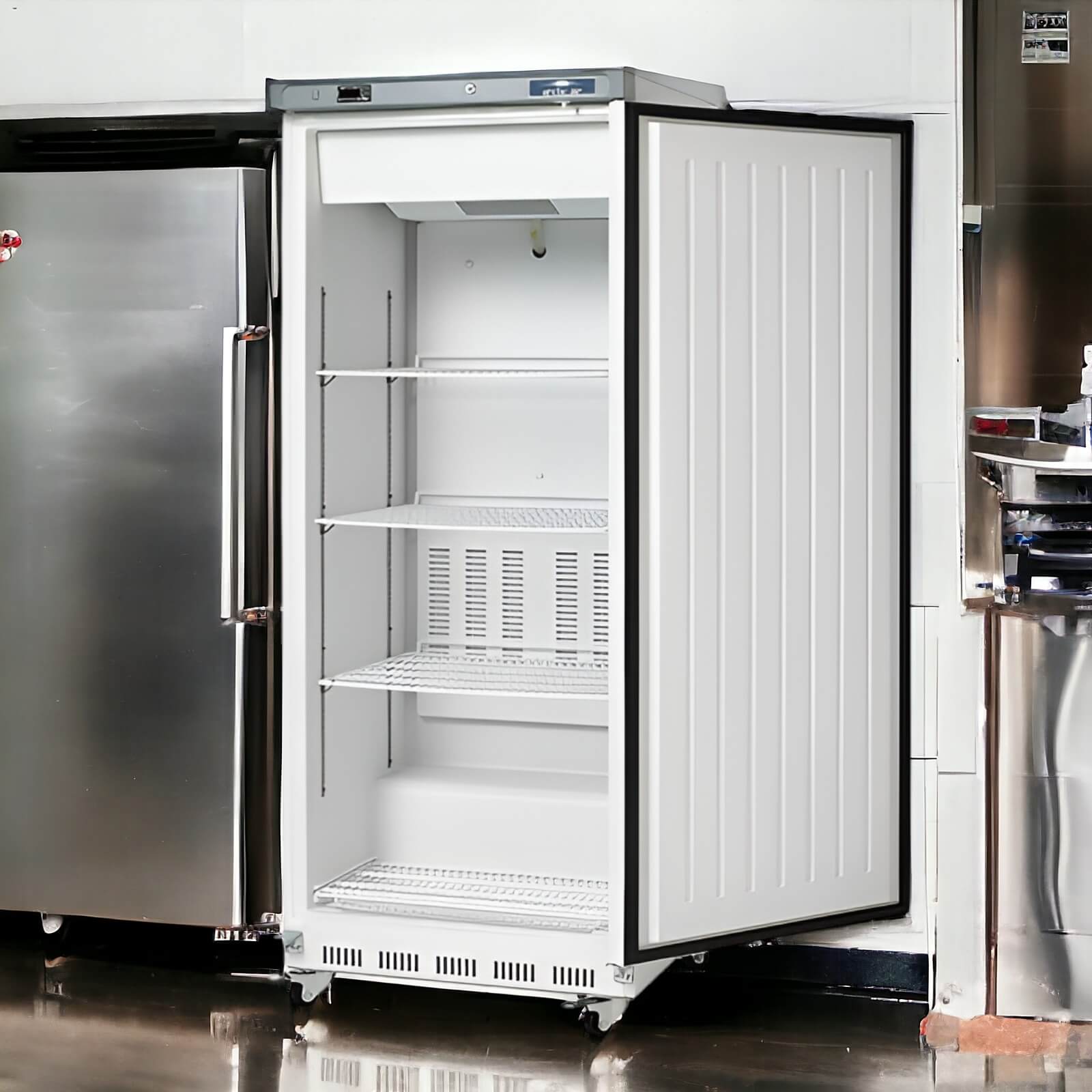

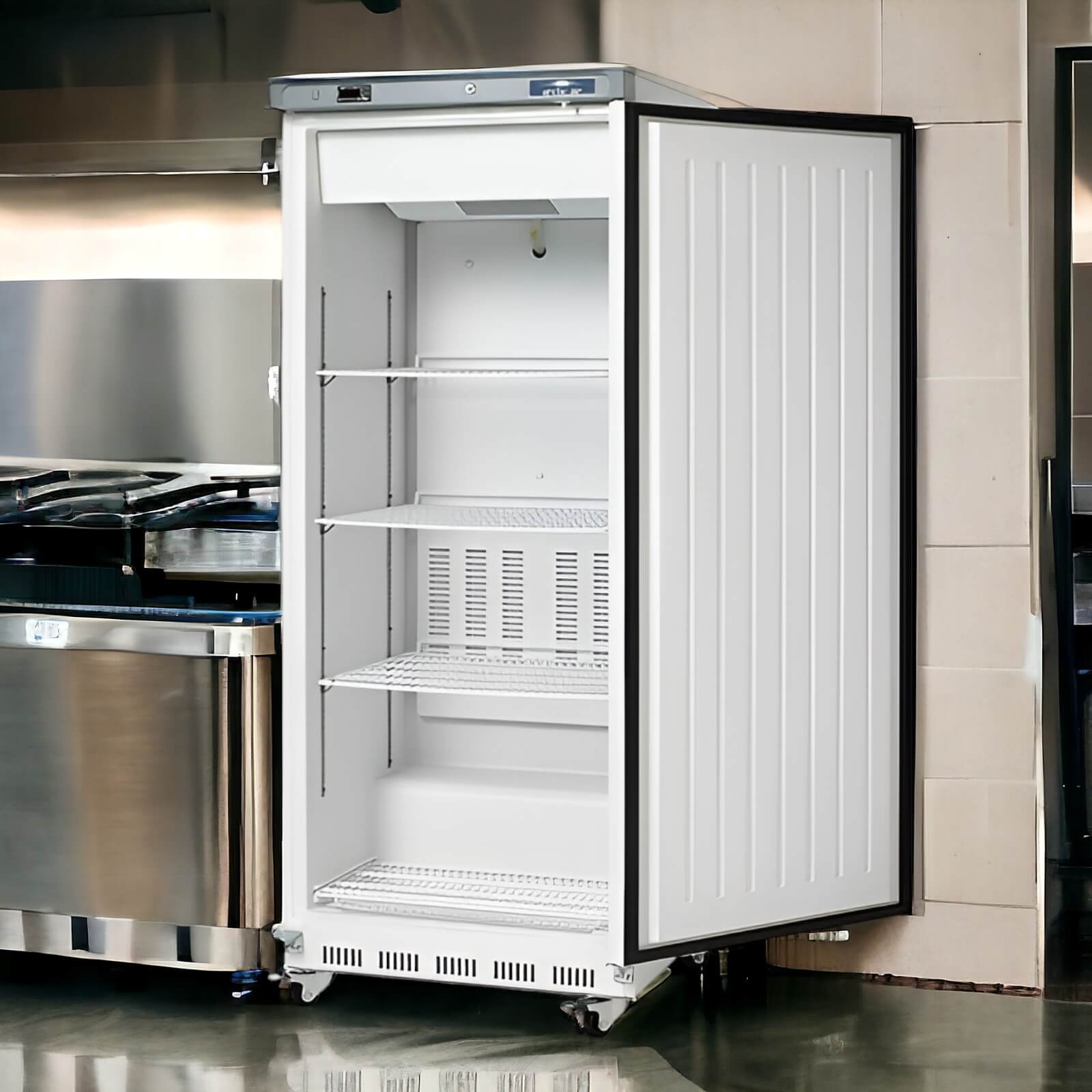

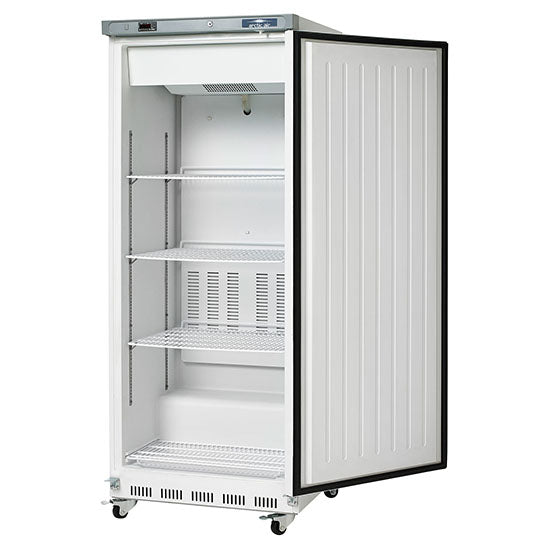

Arctic Air AWF25 | 31" Wide White 1 Door Bottom Mount Reach-In Freezer

Description

Arctic Air’s economy reach-in refrigerators are designed to bring you real, commercial-grade performance at a truly incredible value. All Arctic Air commercial products are tested to NSF levels and must pass numerous quality control inspections throughout the manufacturing process.

The exterior of our economy reach-in models are designed in a smooth white epoxy coated aluminum surfaces for a professional and clean look. More importantly, our products have many features that are desired in today’s commercial foodservice market. Features that include an inner door liner that is constructed of a hi-impact ABS polymer with an irregular shaped surface along with a vaulted design that extends beyond the door opening when shut. This door liner allows the end user lower compressor run times over the life of the unit due to its irregular surface working in conjunction with the vaulted door liner, other features include hi-grade stainless steel floor with coved corners, high output yet electrically efficient fan motors, electronic micro-processing digital temperature control with external digital display, bottom mounted condensing unit for easy maintenance/cleaning/servicing.

Unit also comes standard with (3) epoxy coated/adjustable shelves per door section, casters (2) locking, doors are self-closing. Magnetic door gaskets are removable without tools.

Features

• Electronic thermostat with an external digital LED display for accurate control and easy reading.
• Interior cabinet is a bright white ABS liner with a full stainless steel floor with coved corners.
• Three adjustable, heavy-duty epoxy coated wire shelves.
• Self-contained capillary tube system using environmentally friendly R290 Hydrocarbon gas.
• Exterior cabinet construction consists of full white epoxy-coated front and sides.
• Efficient condensate hot gas loop built into the condensate pan for energy-saving evaporation of excess condensate water.
• Bottom-mounted compressor for more efficient operation in the coolest area of the kitchen.
• Vaulted self-closing doors that remain open at 90 degrees.
• Magnetic door gasket is removable and replaceable without tools.
• Field-reversible, lockable door with foamed-in-place recessed handle.
• Larger fan motors and blades for more efficient airflow ensuring faster recovery times.
• Easy to mount casters (two lockable) are standard with all units.
• Tested to NSF Standard 7 requirements for open food storage.
• Standard with full one-year parts and labor warranty and a five-year compressor warranty.

Warranty

The warranty on most Arctic Air products is two years from date of purchase on parts & labor and five years on the compressor (part only). The exceptions are models ACP40, ACP48, ACP55, ACP63, ACP4SQ, & ACP8SQ which have one year parts & labor warranty only and AWR25 & AWF25 which have one year parts & labor and 5 year compressor part coverage.

Any outdoor install, mobile kitchen, food truck, or unspecified special installed unit has a limited one-year parts & labor warranty only. The warranty is not valid for Residential use.



Shipping

You can view our shipping policy here.

Returns/Refunds/Damages

Customers have 48 hours to inspect and report damages & no item may be returned after 30 days of the original ship date from our facilities.

Items that are returned damaged or without proper packaging materials are subject up to a 25% restock fee.

Product Specifications



Model Number	AWF25
Width	30.75”
Depth	29”
Height	78”
Temperature Range	-10 F to 10 F
Doors	1
Epoxy Coated Shelves (horizontal)	3
Cubic Feet	25
Cord Length	8’
HP	4/5
AMPS	7.0
REF	R290
NEMA Plug	5-15P
Crate Weight	275Llbs



Documents

Product Spec Sheet (PDF)

Owner’s Manual
